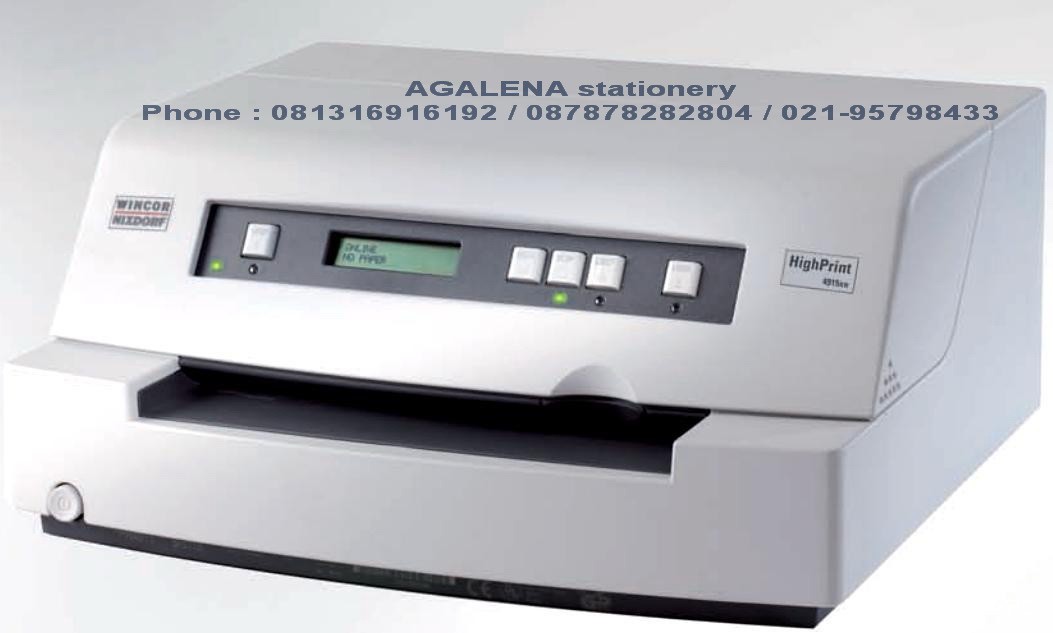

PASSBOOK - WINCOR 4915xe

PRINTER TYPE
Multifunction 24-pin flatbed printer
PRINTING METHOD
Serial, bidirectional logic-seeking
printing
PRINT HEAD
24 pins, noise-optimized arrangement,
service life 500 million dots, can be
replaced by customer
RIBBON
Fabric ribbon in cartridge, black
Service life in DQ: 16 million characters
CHARACTER MATRIX
( HORIZONTAL X VERTICAL)
n Letter quality LQ 24 x 36
n Draft quality DQ 24 x 12
n Graphic resolution 360 x 180 dpi
PRINTing SPEED
( at 10 characters per inch, in characters
per second)
n DQ 300 cps
n LQ 100 cps
n OCR A/ B 145 cps
n DIN letter in DQ 12 seconds
n DIN letter in LQ 22 seconds
PRINTING WIDTH
n 10 cpi 90 characters
n 12 cpi 108 characters
n 15 cpi 135 characters

CHARACTER PITCH
( EMULATION-DEPENDENT)
10, 12, 15, 16.6, 17.1, 20 characters per
inch and proportional font
LINE PITCH
6 and 8 lines per inch, switchable,
additional 1/ 180 inch increments
FONT
DQ, LQ ( Sans Serif, Roman) , OCR A/ B
Barcode 39, 2 / 5 interleaved
PRINT ATTRIBUTES
Bold, italics, underlined, elongated
print, sub-/ superscript
CHARACTER SET
n IBM PC2 CP437
in 13 national languages
n ISO 8859-2/ -5/ -7/ -8/ -9
n Others available on CD-ROM
( PC and Windows code pages)
PAPER FORMATS
Single-part forms ( mm) :
Length x width
70 - 350 70 - 240
